Innovation

Advanced R&D backed by proven industrial processes and methods

• Intelli'Inks system ensures optimal coder performance and flexibility when coding different package materials.
• Intelli'Swap technology streamlines mechanicals down to swappable modules.
• Jet Speed Control technology automatically adjusts ink and printer variables to ensure drop placement, quality and code consistence. Every time.

Sustainability

More sustainable solutions = Long-term value and lower TCO

• Intelli'Swap modularity enables you swap out only the individual parts that need to be replaced and not the entire block
• Intelli'Design process and a portfolio of rigorously developed ink formulations help reduce consumable consumption and VOC emissions by up to 50% while improving operator safety, well-being and TCO
• Consumable-saving mode additionally reduces consumption and waste

Digitalization

Convenience only a couple clicks away

• Remote services, including remote diagnostics, allow for a predictive analysis and therefore help maximize uptime, achieve OEE objectives
• Consumable and spare part supply through online portal
• Quick customizable 24-pin interface allows for easy integration in a 4.0 connected environment

WYSIWYG 10-inch capacitive color touchscreen: real-time display of remaining print capacity expressed in hours and number of messages; integrated assistance and alert system; simplified message printing and management; creation of user profiles; tracking of consumption and printer availability

Message library (up to 1,000 messages)

Automatic selection of fonts, depending on print speed and printhead/object distance

Specific date management (rounding date function)

Parent/child connectivity

Jet Speed Control guarantees marking quality

Printhead with embedded intelligence for high marking quality and reduced maintenance

Broad range of inks: multi-use, high performance; alcohol based, ketone-free and MEK-free inks

Sealed 0.8-liter cartridges with fool proofing system

Compact and modular ink circuit for better thermal management and controlled additive consumption

100% front access modular ink circuit for a simplified preventive maintenance

Remote Services including MI Virtual Assistant for 24/7 self-troubleshooting and “how to” videos

Quick connect/disconnect of accessories (photocell, alarm and encoder)

Enhanced native connectivity including USB, Ethernet, serial and a configurable M12 connector for I/O

Ultra-flexible 6-meter umbilical cable

IP66 protection (plant air required)

TCO option for lower additive consumption: at 20 ºC less than 3,5 cc/h for MEK-based ink or less than 2cc/h for MEK-free ink

Printhead pressurization kit

Many I/O possibilities including a configurable single point connector (24 pins)

Wide range of accessories

Printer supports: stands (stainless steel or aluminum), table or wall mounting brackets

Printhead supports: stand (stainless steel) and choice of brackets

Photocells

Encoders

Alarm beacons (24 V)

Set of pre-cabled connectors M12, Ethernet IP66

Fully compatible with CoLOS Version 6.3 Service Pack onwards
Logo creation with CoLOS® Graphics software

Miva, intelligent self-support solution
Live helpdesk support with remote video capabilities
Connected Devices Services, based on a secured IoT cloud infrastructure (check availability in your country)

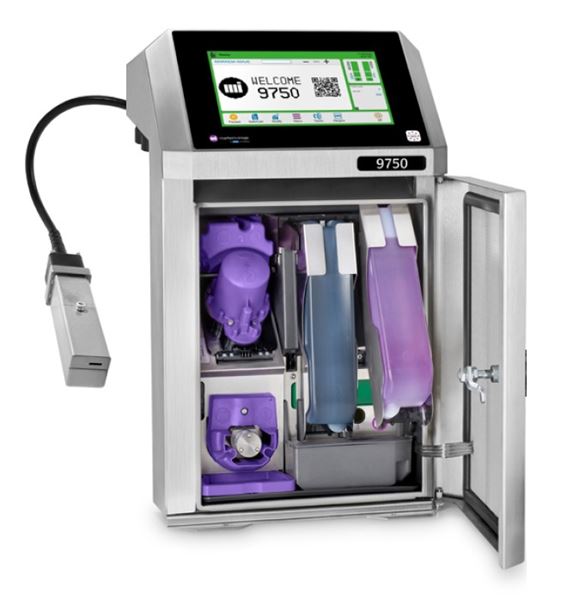

Meticulously engineered and qualified by the most modern methods, the 9750's latest enhancements bring you:

• Technology leaps grounded in time-tested industrial processes for maximized uptime, reduced maintenance
• Cutting-edge design with simplified UI and modular components for easy operation, maintenance or repair
• Clear, customizable, traceable codes that meet customers' growing demand for supply chain visibility
